Kit 106-670-400 IKA REGISTERED

The pinnacle of Sabfoil Racing Division. The K106670400 is specifically designed and built for racing

K106670400 is IKA registered 2020/2024, thus every single component of the kit goes through two different quality and measurement checks to ensure that each produced foil has the same performances

Every part of this foil is designed to reduce drag and to provide the best hydrodynamic performances. Each detail is precisely tuned to maximise the ratio speed/angle, while avoiding ventilation

The use of high modulus carbon has been optimized both by virtual prototyping and physical tests to have a foil with maximum stiffness and torsional strength and minimum elongation

The combo W670/S400 provides superior stability and control even at the highest speed

IKA Registered 2020/2024

Micro-fractures on the mast caused by accidental collisions or by freestyle use of your race specific foil can cause the mast to break suddenly. For this reason, we recommend to check the mast carefully after a collision and avoid to jump with your Sabfoil race foil

                   TECHNICAL DATA




LIFT SPEED _____________  8/10
CONTROL ______________  8/10
MANEUVERABILITY __________  9/10
UPWIND _________________  10/10
TOPSPEED _______________   10/10

PACK CONTENT:
1 x    M106 Carbon Tuttle Mast 106
1 x    FK604 Fuselage 604
1 x    W670 Carbon Front Wing 670
1 x    S400 Carbon Stabilizer 400
3 x    Flat head screw torx M6x16mm
4 x    Flat head screw torx M6x20mm
Grease, torx, hex tip, Instructions

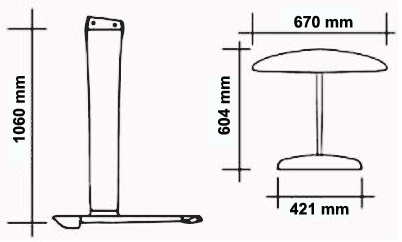

DIMENSIONS & ADVANCE SPECS:
MAST HIGHT ------------------------------ 1060 MM
FRONT WING SPAN -------------------- 670 MM
FRONT WING ROOT CHORD -------- 115 MM
FRONT WING ASPECT RATIO ------- 7.8
FRONT WING SURFACE -------------- 570 CM2
STABILIZER SPAN ---------------------- 400 MM
STABILIZER ROOT CHORD --------- 64 MM
STABILIZER ASPECT RATIO -------- 7.73
STABILIZER SURFACE --------------- 207 CM2
MAST WEIGHT ------------------------- 1.87 kg
BOARD CONNECTION -------------- TUTTLE
FUSELAGE LENGTH ----------------- 603.6 mm
FUSELAGE WEIGHT ----------------- 600 gr
KIT WEIGHT ----------------------------- 3,186 gr ± 5%
